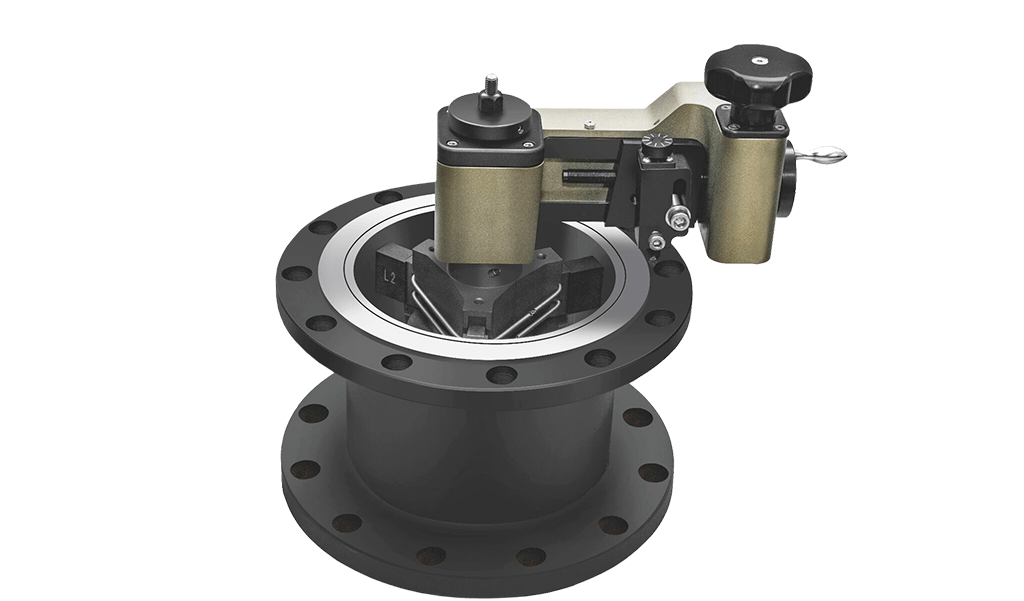

The MFF350 Manual Flange Facer is a versatile and portable tool designed for on-site repair and maintenance. This flange facer is powered by hand, eliminating the need for electric motors or other power sources. This makes it ideal for use in remote locations where power is not readily available.
With a facing diameter range of 1.07 – 14 in. (27.2-355.6 mm), the MFF350 is capable of handling a wide variety of flange sizes. The ID Clamping Range of 1.07 – 10.63 in. (27.2 – 270 mm) allows the user to achieve precise and accurate facings with ease.
The manual operation of the MFF350 gives the user complete control over the facing process. This makes it an ideal tool for situations where accuracy and precision are critical. The compact and portable design of the MFF350 makes it easy to transport and store, making it an essential tool for any maintenance team.
In conclusion, the MFF350 Manual Flange Facer is a high-quality, durable tool that offers a cost-effective solution for on-site repair and maintenance. Its versatility, precision, and portability make it a valuable addition to any maintenance toolkit.
| SPECIFICATIONS | INCH | METRIC | |
| Facing Diameter | 1.07 – 14 in. | 27.2-355.6 mm | |
| ID Mounting Diameter | 1.07 – 10.63 in. | 27.2 – 270 mm | |
| Facing Feed Rate | Fine Finsh | 0.005 in./rev | 0.125 mm/rev |
| ASME B16.5 | 0.02 in./rev | 0.5 mm/rev | |
| Tool Post (Vertical) | 1.57 in. | 40 mm | |
| Swing Diameter | 19.5-22.9 in. | 495-582 mm | |
| Power Option | Manual | Hand-power | |
| Working Weight | 9 kgs | ||
| Shipping Weight | 29 kgs |
Do you struggle with the time and cost associated with flange replacement? Are you looking for a more efficient and cost-effective solution to maintain your flanges? Look no further than the EZLINK Eff1000 Flange Facer.
The Flange Facer EFF610 is rugged, compact and ideal for quickly reconditioning rusty, scarred or worn flange gasket seats to like-new condition in minutes. Internally mounted, facing from 80mm(3.15″) to 610mm(24″) and features 2 continuous feed rates.
Flange facing is an essential process in the maintenance and repair of pipes and other industrial equipment. The MFF350 manual flange facer offers a convenient, efficient and cost-effective solution for flange facing tasks. With its hand-powered operation and a clamping range from 1.07″ to 10.63″, the MFF350 is designed to meet a wide range of on-site maintenance and repair needs.
