PB14 ID Mount Pipe Beveling Machine
Beveling is the process of creating an angle between the end and edge of a tube. Pipe beveling is a very important part of the welding process. The quality of welding is affected by how well the beveling was carried out.

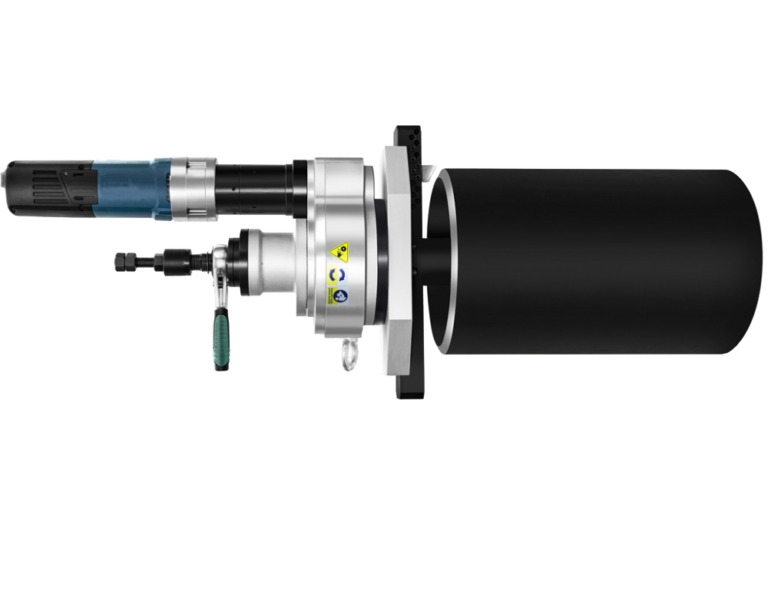

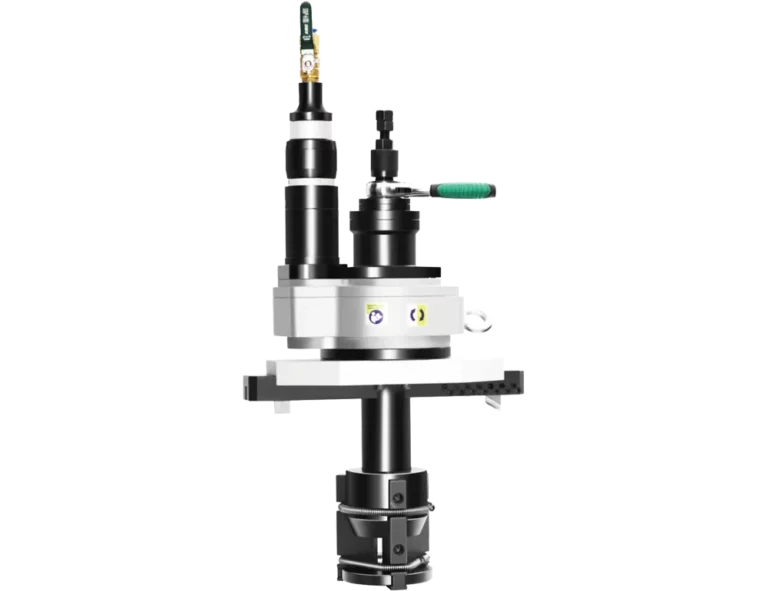

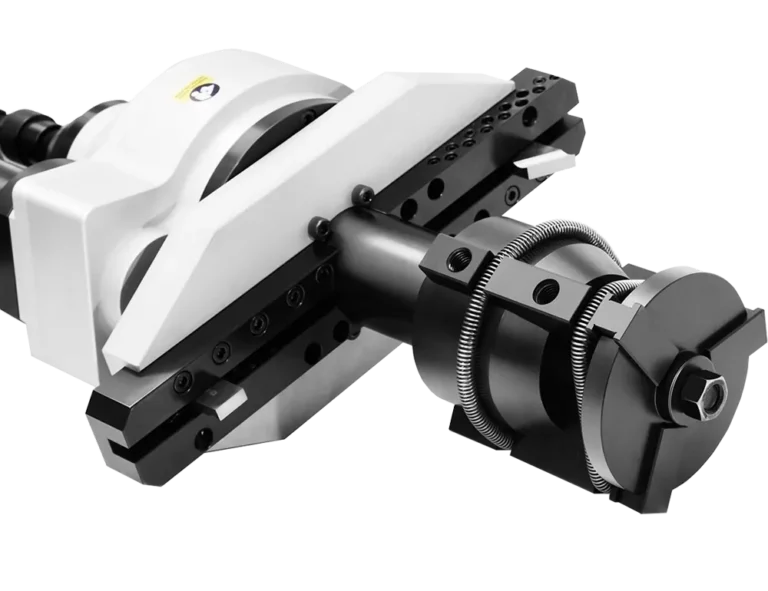

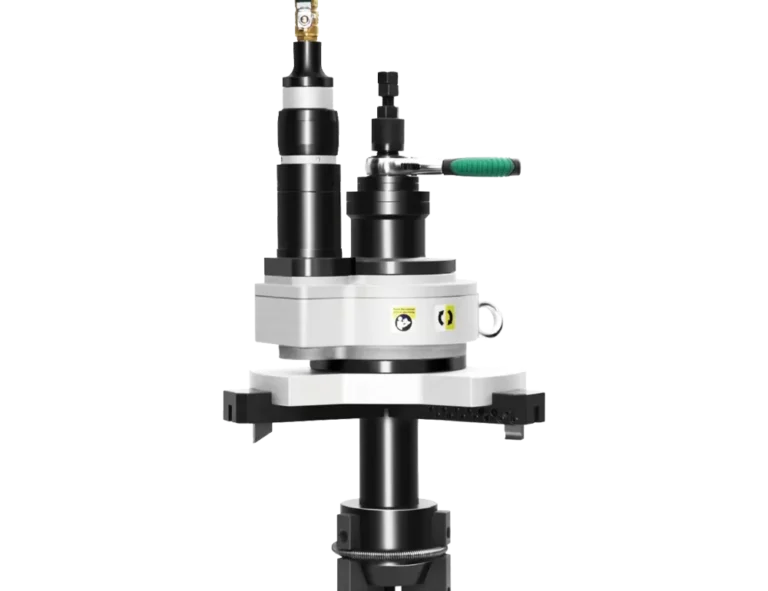

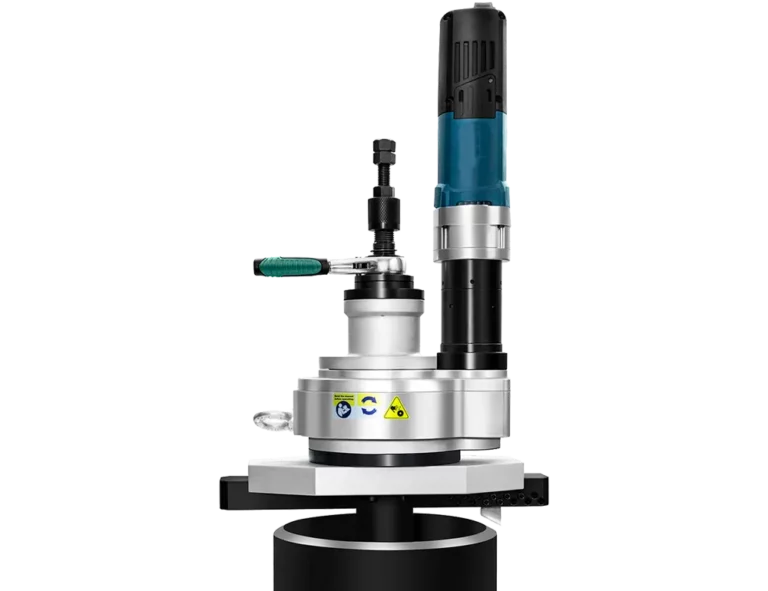

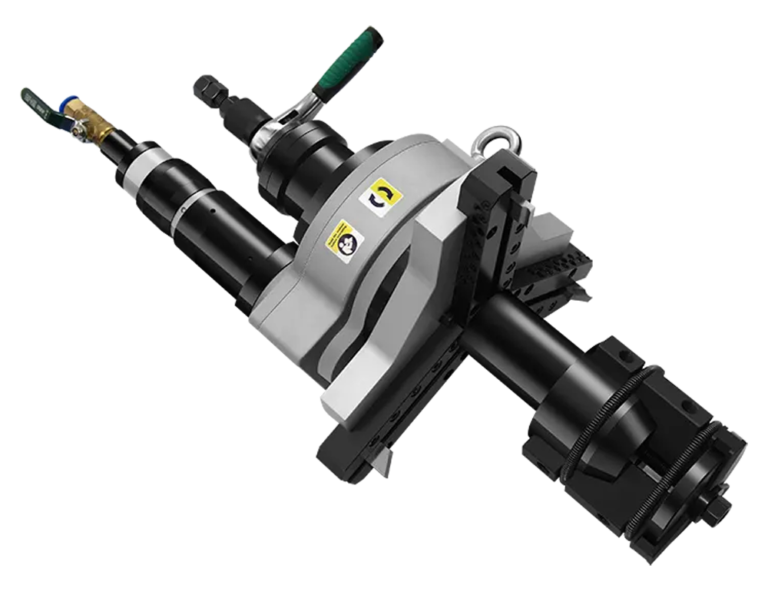

The PB14 ID Pipe Beveling Machine can be equipped with an electric 220V or a pneumatic drive. It is clamped in the pipe using a self-centring shaft with new designed expanding structure makes the fix more stable and perform more smooth, less vibration
PB14 ID Pipe Beveling Machine
|Clamping range ID-ID||5.7 – 13.38 in.||145-340 mm|
|Working range ID-OD||5.7 – 14 in.||145 – 355.6 mm|
|Max. Wall-Thickness||0.79 in.||20 mm|
|Weld prep||V Prep, U Prep, Facing|
|Rotation Speed||Pneumatic:||18 RPM|
|Electric Motor:||20 RPM|
|Electric Motor:||1500w||220-240V 1PH 50/60HZ|
|Working Weight||Pneumatic:||46 kg|
|Electric Motor:||48 kg|
|Shipping Weight||Pneumatic:||73 kg|
|Electric Motor:||78 kg|
|Packing:||Pneumatic:||33x 16.5x 17.7 In.||840x420x450 mm|
|Electric Motor:||37x 18x 17.7 In.||940x460x450 mm|
