Flange facing is an essential process in the maintenance and repair of pipes and other industrial equipment. The MFF350 manual flange facer offers a convenient, efficient and cost-effective solution for flange facing tasks. With its hand-powered operation and a clamping range from 1.07″ to 10.63″, the MFF350 is designed to meet a wide range of on-site maintenance and repair needs.

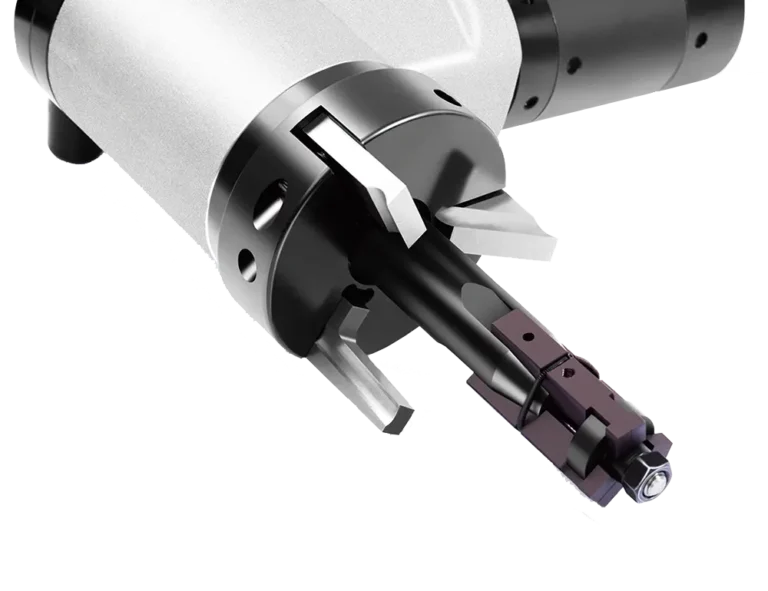

PB3 ID Mount Pipe Beveling Machine
Beveling is the process of creating an angle between the end and edge of a tube. Pipe beveling is a very important part of the welding process. The quality of welding is affected by how well the beveling was carried out.

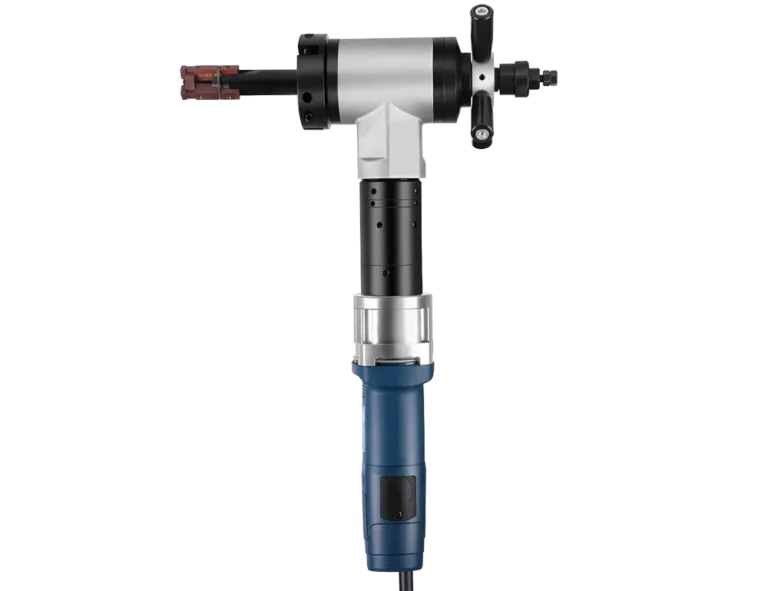

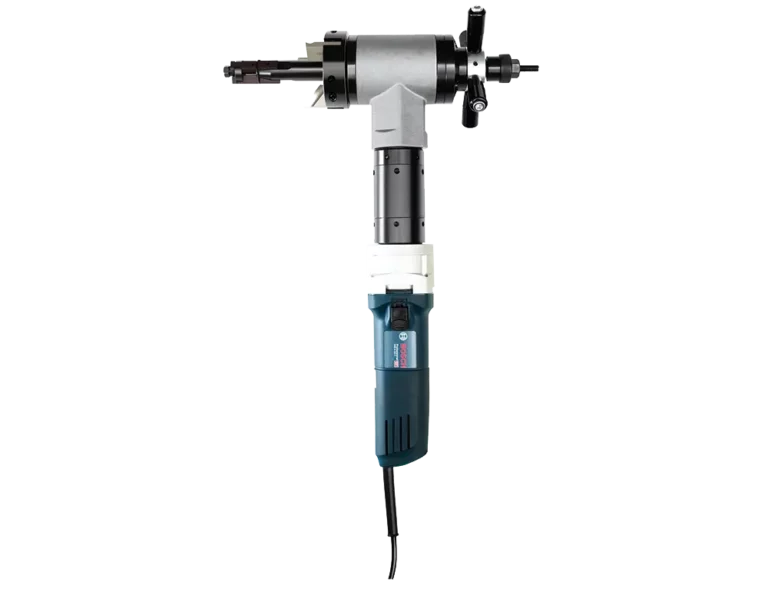

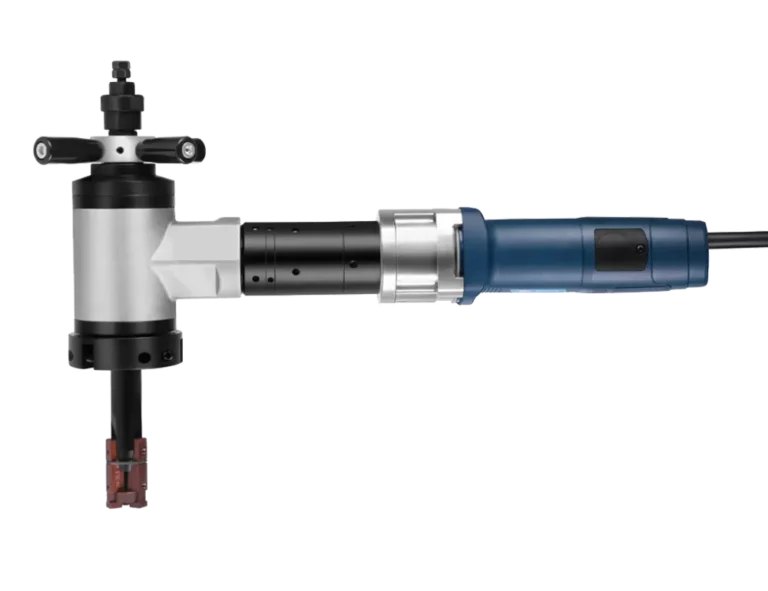

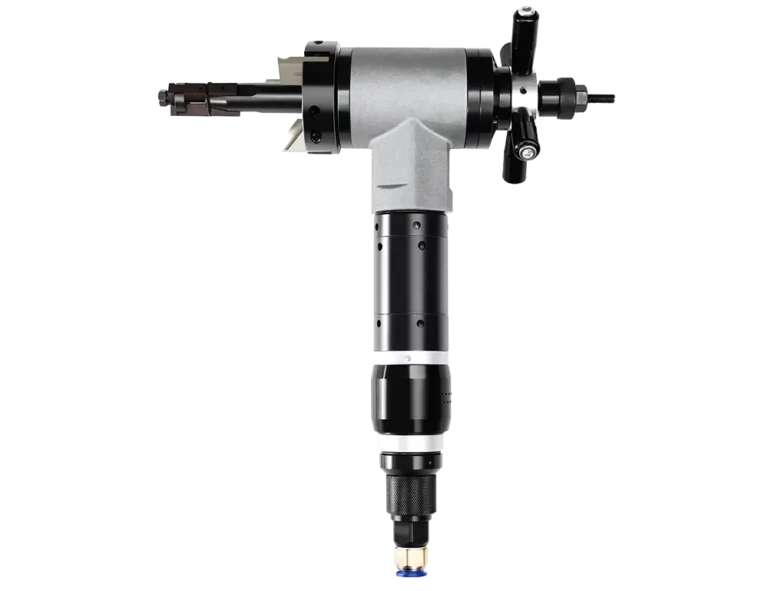

The PB3 Pipe Beveling Machine can be equipped with an electric 220V or a pneumatic drive. It is clamped in the pipe using a self-centring shaft with new designed expanding structure makes the fix more stable and perform more smooth, less vibration
PB3 PIPE BEVELER
|Clamping range ID-ID||0.98 – 3 in.||25-76 mm|
|Working range ID-OD||0.98 – 3.5 in.||25 – 88.9 mm|
|Max. Wall-Thickness||0.59 in.||15 mm|
|Weld prep||V Prep, U Prep, Facing|
|Rotation Speed||Pneumatic:||66 RPM|
|Chinese Motor:||52 RPM|
|Bosch Motor:||48 RPM|
|Chinese Motor:||1000w||220-240V 1PH 50/60HZ|
|Bosch Motor:||1000w||220-240V 1PH 50/60HZ|
|Working Weight||Pneumatic:||8.5 kg|
|Chinese Motor:||9 kg|
|Bosch Motor:||9 kg|
|Shipping Weight||Pneumatic:||15 kg|
|Chinese Motor:||16 kg|
|Bosch Motor:||16 kg|
|Packing:||23.2 x 16.2 x 6.7 in.||590 x 410 x 170 mm|
Flange facing is a critical process in the maintenance and repair of pipelines, valves, and other equipment that use flanged connections. This process involves machining the surface of a flange to achieve a smooth, flat, and parallel surface that ensures a tight and leak-free seal between two connected components.
Do you struggle with the time and cost associated with flange replacement? Are you looking for a more efficient and cost-effective solution to maintain your flanges? Look no further than the EZLINK Eff1000 Flange Facer.
